10.07.2020

Hinge expands range of applications for the multi-waler

PASCHAL has further expanded the spectrum of applications of its multi-water with a hinge piece.

The multi-functional, lightweight multi-waler is compatible with all PASCHAL formwork systems for stiffening a bracing of panels, for filler pieces as well as for stop ends and as a wall stop bar.
And now the possible uses have been further expanded with the multi-waler hinged part.
In order to offer a practical connecting element for both acute- and obtuse-angled concrete structures for construction companies, PASCHAL further developed this product by creating the hinged part of the lightweight multi-waler.

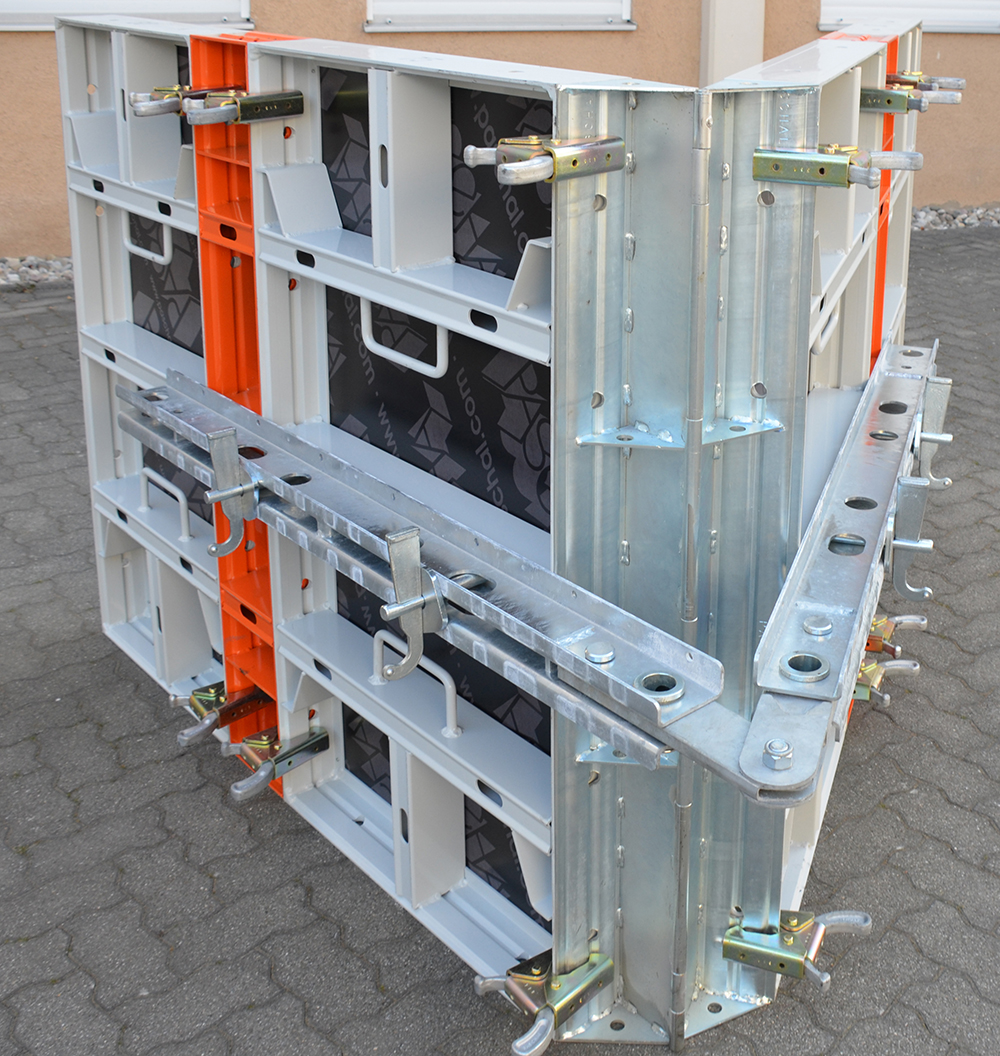

Hinge piece for multi waler
The multi-waler hinged part - a small piece offering major, practical benefits. Its use is shown here on an acute-angled formwork structure.

Acute- to obtuse-angled structures

As such, angled structures ranging from an acute 60° to an obtuse 150° can be tied. Panel connections mounted around corners can thus be simply, easily and rapidly stiffened.

Fewer parts for a better overview

Two multi-walers can be joined with a force-fitted connection via the hinged part with bolts with a security pin - stiffening panels around corners couldn't be easier!
The 1.40 m-long multi-waler can be connected to the formwork panels using a LOGO clamping piece or, alternatively, using hook headed bolts and a plate with ball-and-socket joint or a waler support DW 15.

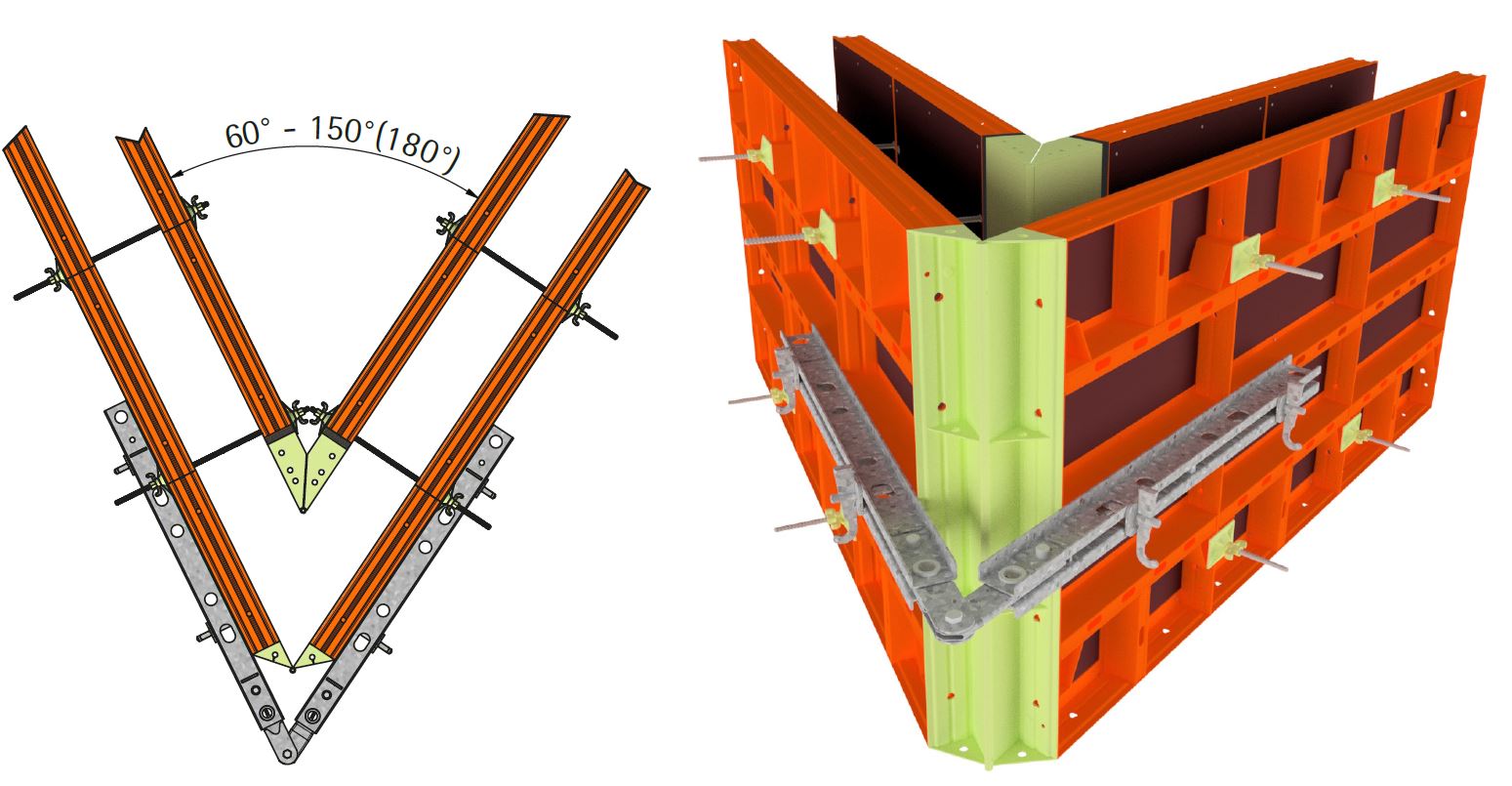

Multi-waler hinged part to accommodate acute and obtuse angles
Developed right around the corner. The multi-waler for stiffening horizontal and vertical panel joints was shown at the bauma trade fair in 2019 and the handy multi-waler hinged part was added shortly afterwards in order to accommodate acute and obtuse angles.
