NeoR

Less weight - more performance

  • Universal fields of application: Foundations, columns, beams, walls
  • Height offset of the panels can be performed via oblong holes in the panel frame
  • Well-balanced range of panels
  • 90 x 150 cm panel can be used both vertically and horizontally due to internal tie-points
  • A floor height of up to 3 m can be formed with just one extension
  • Keybolts as lightweight, friction-locked and cost-effective connecting pieces
  • Easy attachment of accessories using the hook head principle
  • The structural height is just 7.5 cm → low storage and transport volume
  • The flat steel frame guarantees robustness and durability
  • Fresh concrete pressure capacity of 50 kN/m²
  • Compatible with all PASCHAL systems

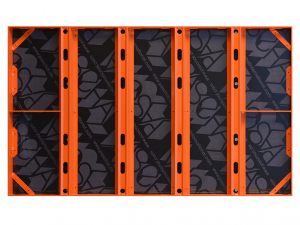

Lightweight formwork NeoR

NeoR lightweight formwork in action at a test site

Due to the low weight (30 kg/m²), the NeoR can be moved easily by hand – ideal for construction sites, even without a crane.

Technical Data
Panel widths  90/75/60/45/30/15 cm
Panel heights  150/90 cm
Large-size panel  180 x 300 cm
Frame depth  7,5 cm
Plywood  12 mm birch plywood
Max. concrete pressure  50 kN/m² according DIN 18218
Tolerances of deflection  According DIN 18202, table 3, line 6
